Power 12V DC 4 Out FTTH

• 88 / 92 dB RF output in 8 / 4 Output respectively @ 0 dBm Optical Input,
• 12V DC External Power Supply,
• Also Operated with STB Revers Supply,
• Optical Input +3 ~ -8 dBm,
• +/- 0.75 dB RF Fltatness,
• MMIC Amplification Technology,
• Very small in Size,

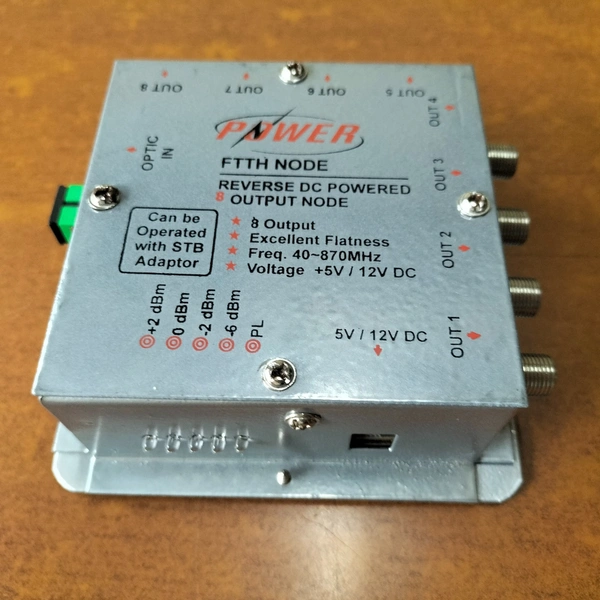

12V DC (Active) 8 / 4 Output FTTH. Whch is specially design for Fiber to Home Network, as per Indian Operating Condition. This FTTH gives you 88 dB / 92 dB RF output in 8 Output / 4 Output respectively @ 0 dBm Optical Input. It has the capability to convert even weak optic signals to a high quality RF signal. Superior Quality MMIC have been incorporated to achieve excellent C/N, CSO & CTB performance providing a stable RF signal. Because of it’s small size It can be fixed even in the Joint Closer box also.  It’s operate on very low Power consumption (less then 3 Watt). You can Operate 12V DC External Supply Or even can be operated from Customers Set-Top box supply also. Very Low Power Consumption.
