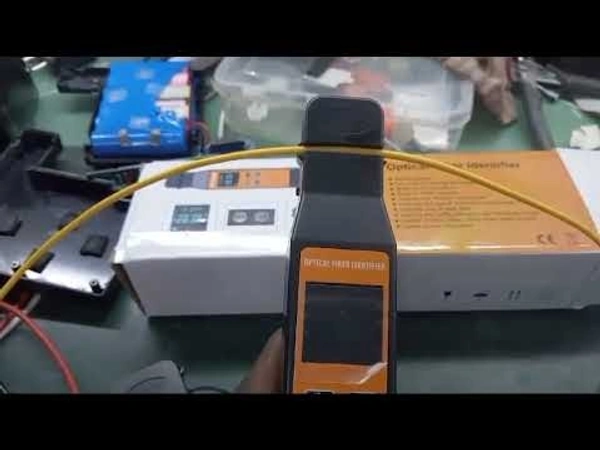

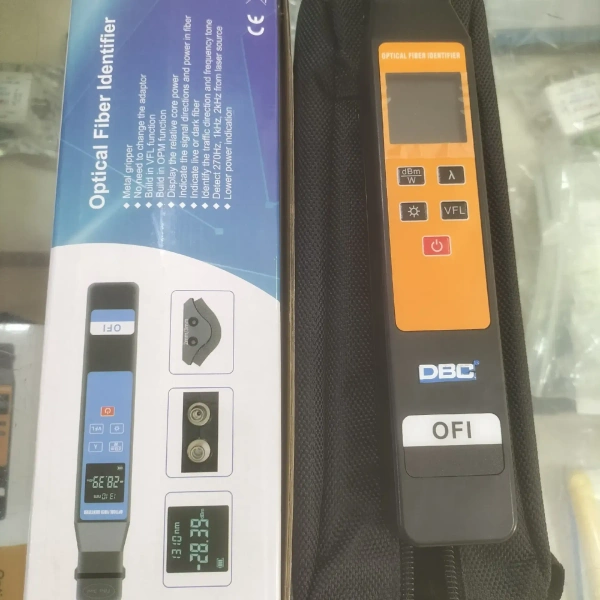

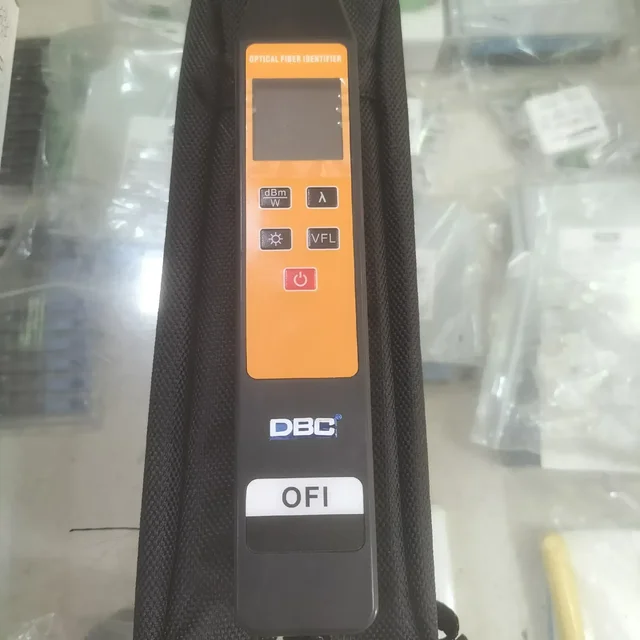

Optical Fiber Identifier

Live Optical Fiber Identifier Fiber Identifier with Wave Respond 800-1700nm Detection Rang +13~-50dBm Built in 10mw VFL and Optical Fiber Power Meter -50~+26dB FTTH Tool (YC-ID-401)

About this item

Indicate the signal directions and power in fiber,displays the relative core power.Can detect optical signals in the tone signal fixed load,270Hz,1KHz and 2KHz,to identify a specific optical fiber,can quickly find the necessary fiber.

Build in OPM function,test wavelength 850/1300/1310/1490/1550/1625nm,Measurement range -50~+26dB.Connectortype 2.5 universal connector.

Build in VFL can measure the fiber distance is about 10-15 kilometers.

Metal gripper,no need to change the adapter,Application of optical fiber 250um/900um/2mm/3mm

Lightweight design and LED color screen.,outline size 230*43*36mm,weight 250g.
